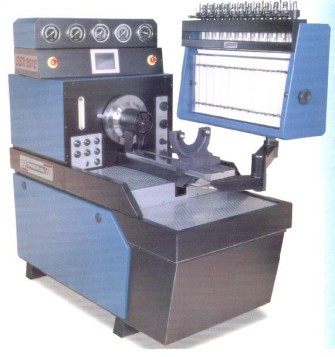

Single, monochromatic (5,7'') or color (5,5'') touch screen type control screen for controlling the following: Main motor, direction of rotation, rpm, temperature of the calibration fluid, injection runs, 12/24-volt power supply, limit of rotation, auxiliary motors, return test tubes etc.

TECHNICAL CHARACTERISTICS

. 20 cv (a.c.) motor controlled by a frequency inverter (220 or 380 volts, 50 or 60 Hz).
. Direct transmission from the motor to the blade coupling.
. 12/24 volts power supply.
. Independent feed pump with low (0 to 4 kg) and high (0 to 40 kg) pressure system.
. Autonomous feeder pump for oil lubricating system (0 to 7 kg).
. Vacuum gauge - 76 cm HG + 4 kg (vacuum and feed).
. Pressure gauge 0 to 40 kg / 560 PSI (high pressure).
. Pressure gauge 0 to 16 kg / 230 PSI (transfer pressure).
. Pressure gauge 0 to 2,5 kg / 35 PSI (LDA).
. 0 to 7 kg pressure gauge (lubricating oil pressure).
. Oil tank with capacity for 30 liters.
. Lubricating oil chamber with a capacity of 12 liters.
. Heater-synchronized water cooling system.
. Delphi EFL 299 filter.
. Test tube capacity: 0 to 260 ml and 0 to 44 ml.
. LDA (smoke limiter).
. 12 cylinder, rotary water tower, with lighting.
. Micronized-powder electrostatic painting.
. Test tube for measuring the pump return on the machine's front panel.

SERIES EQUIPMENT

. Blade coupling
. 12 injector holds in accordance with ISO standard
. Pump supports "A", "B"and "P"
. Coupling for rotary pumps (Delphi/Bosch)
. 06 A-B tubes (Bosch)
. 06 A-B tubes (Delphi)
. 12 B-B tubes (Bosch)
. 03 quick-coupling shielded hoses
. 02 quick-coupling plastic hoses
. 02 plastic hoses
. 01 quick-coupling hose for the LDA
. 06 quick-coupling connections
. 01 flange for Bosch pump with rings
. 01 5 mm Allen wrench
. 01 double gear
. 01 VE pump gear
. 01 DPC pump gear
. 04 "P" pump support Allen screws
. 01 12/24 v cable
. 01 synchronization lever
. 02 feed and return connections
