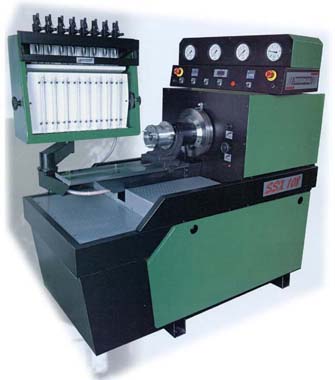

TECHNICAL CHARACTERISTICS

. 12.5 CV (AC) motor controlled by a frequency inverter (22 or 380 volts, 50 or 60 Hz).
. Direct transmission from the motor to the blade coupling.
. Adjustable rotation through a multiturn potentiometer (0 to 3,500 rpm).
. Microprocessed injection programmer (0 to 9999 injections).
. Digital tachometer (4 digits).
. 12 volts power supply.
. Independent feed pump with low (0 to 4 kg) and high (0 to 40 kg) Pressure system.
. Vacuum Gauge -76 cm HG + 4 kg (Vacuum and feed).
. Pressure Gauge 0 to 40 kg / 560 PSI (High pressure).
. Pressure Gauge 0 to 16 kg / 230 PSI (Transfer pressure).
. Pressure Gauge 0 to 2.5 kg / 35 PSI (LDA).
. Oil tank with capacity for 32 liters.
. Microprocessed temperature controller.
. Heater-synchronized water cooling system.
. Delphi EFL 299 filter.
. Test tube capacity: 0 to 260 ml and 0 to 44 ml.
. LDA (Smoke limiter).
. 8 to 12 cylinder, rotary water tower, with lighting.
. Micronized-powder electrostatic painting.

SERIES EQUIPMENT

. Blade coupling
. 8 injector holds in accordance with ISO standard (12 optional)
. Pump supports "A", "B"and "P"
. Coupling for rotary pumps (LUCAS / BOSCH)
. 06 A-B tubes (BOSCH)
. 06 A-B tubes (LUCAS)
. 08 B-B tubes (BOSCH)
. 02 shielded hoses
. 01 plastic hose
. 01 quick coupling hose for the LDA
. 02 feed and return connections
. 01 synchronization lever
. 01 flange for a BOSCH pump
. 01 4 mm Allen wrench
. 01 double gear
. 01 VE pump gear
. 01 DPC pump gear
. 04 P pump support Allen screws
. 01 12 v cable
. 02 transfer pressure connections for DPA and DPC pumps
